1. Never Unload the Gauge. Gauge should not be Subjected to more then 75% of its Maximum Range with steady pressure and with Fluctuating pressure not more than 60% maximum range.This will ensure long life.
2. Make sure gauges are used for correct application and pressure medium is not corrosive to bourdon Tube & socket material.
3. For Steam Application, Gauge Should be used with syphon.
4. Gauge should be protected from Mechanical vibration and Pressure surges, It Requires install pulsation Dampner.

INFORMATION TO BE FURNISHED WITH THE ENQUIRY
Dial Size • Pressure Range • Mounting • Connection - Bottom or Back. • Thread Size • Is there any Special Application? • Any optional Feautures Required.

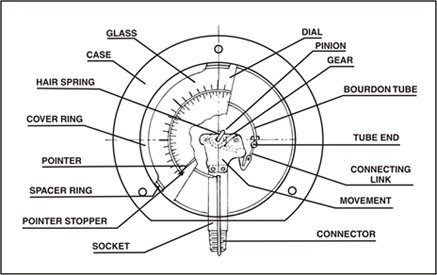

STANDARD SPECIFICATION
1. Dial Size in mm : 51,64,76,102,152 & 250 mm.
2. Housing            : Drawn Steel case with powder coating colour.
3. Bazel Ring        : Drawn steel with powder coating colour or Acrylic Cover.
4. Bourdon Tube   : Brass/Stainless steel/phospher Bronze Tube.
5. Pointer             : Alluminium Anodized Black.
6. Movement        : Precision Alloy Brass Rotary Movement.
7. Socket             : From Extruded Brass Rod/Stainless Steel Rod.
8. Dial                 : Alluminium White back ground & Black & Red Printing.
9. Window           : Glass
10. Theard          : 1/8" BSP/NPT,1/4" BSP/NPT, 3/8" BSP/NPT,
11. Connection    : 1/2" BSP/NPT.
12. Mounting       : A. Direct Mounting Bottom Connection.(Plain Case)
                            B. Surface Mounting Bottom Connection.(Back Flange)
                            C. Panel Mounting Bottom Connection.(Front Flange)
                            D. Direct Mounting Back Connection + With Panel Mounting.
13. Accuracy       : ± 2% to ±3% of S.D. & ±1% of F.S.D against Specific Requirements.
